In this document, we carry out an exploratory data analysis to understand the relationships of wind patterns with other variables:
- We first explore general patterns related to wind directions.
- We then check if covariates are balanced when we define treated days as units with North-East winds and control days as units where winds blow from other directions.
Should you have any questions, need help to reproduce the analysis or find coding errors, please do not hesitate to contact me at leo.zabrocki@psemail.eu
Required Packages
To reproduce exactly the script_eda.html document, we first need to have installed:
- the R programming language on your computer
- RStudio, an integrated development environment for R, which will allow you to knit the
script_eda.Rmdfile and interact with the R code chunks - the R Markdown package
- and the Distill package which provides the template of this document.
Once everything is set up, we have to load the following packages:
We load our custom ggplot2 theme for graphs:
We finally load the data:
General EDA
We explore general patterns related to wind directions.
Wind Direction & Air Pollutants

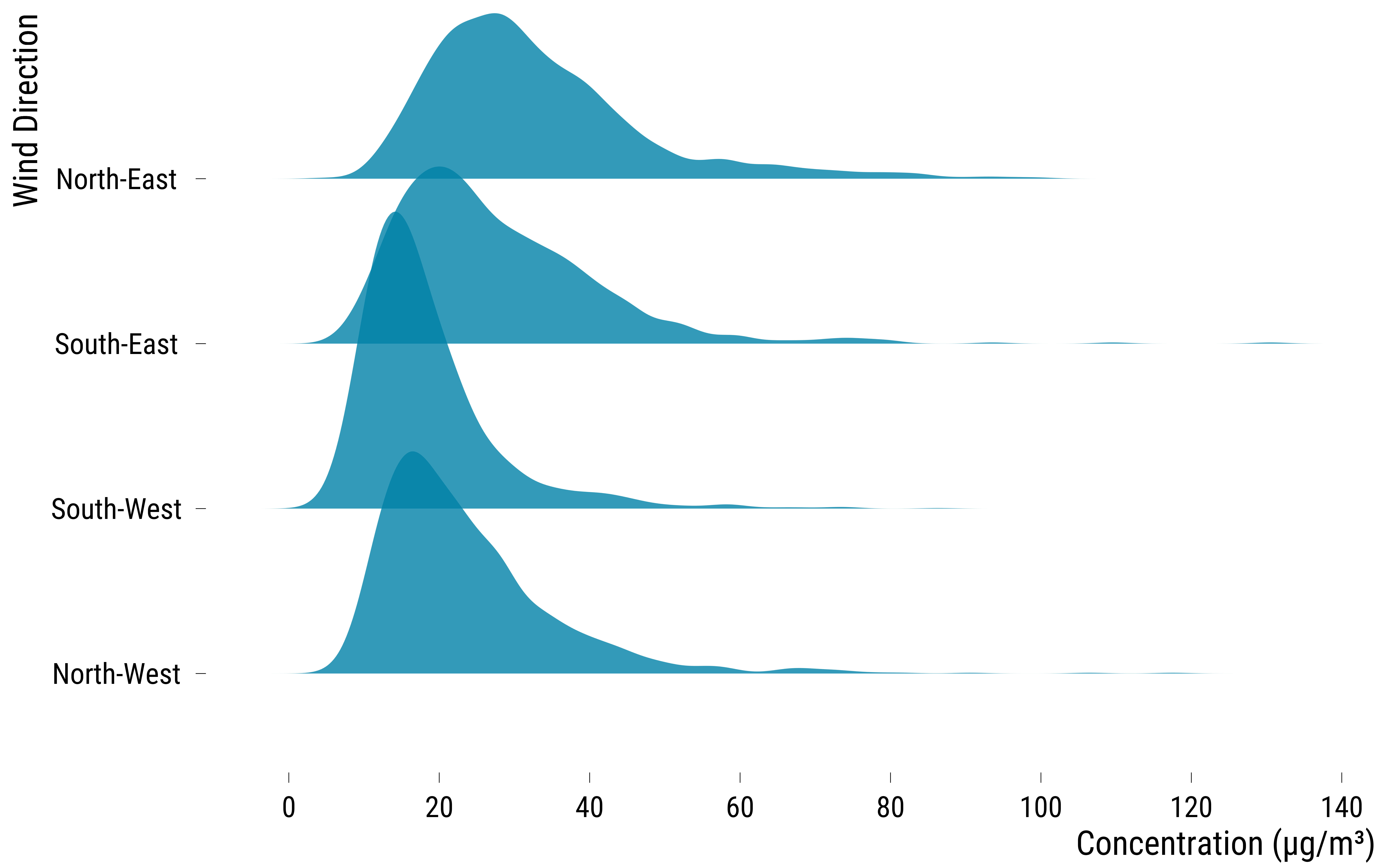

We plot the distribution of PM10 concentration by wind direction:
Please show me the code!
# make the graph
graph_wd_pm10 <- data %>%
ggplot(., aes(x = mean_pm10, y = fct_rev(wind_direction_categories))) +
geom_density_ridges(
color = NA,
size = 0.3,
fill = my_blue,
alpha = 0.8
) +
scale_x_continuous(breaks = scales::pretty_breaks(n = 8)) +
xlab("Concentration (µg/m³)") +
ylab("Wind Direction") +
theme_tufte() +
theme(axis.title.y = element_text(angle = 90, hjust = 1))
# display the graph
graph_wd_pm10
Please show me the code!
# save the graph
ggsave(
graph_wd_pm10,
filename = here::here("inputs", "3.outputs", "1.eda", "graph_wd_pm10.pdf"),
width = 15,
height = 8,
units = "cm",
device = cairo_pdf
)
We plot the distribution of all pollutant concentrations by wind direction:
Please show me the code!
# make the graph
graph_wd_pollutants <- data %>%
rename(
"PM10" = mean_pm10,
"PM2.5" = mean_pm25,
"NO2" = mean_no2,
"O3" = mean_o3
) %>%
pivot_longer(
cols = c(PM10, PM2.5, NO2, O3),
names_to = "pollutant",
values_to = "concentration"
) %>%
ggplot(., aes(x = concentration, y = fct_rev(wind_direction_categories))) +
geom_density_ridges(
color = NA,
size = 0.3,
fill = my_blue,
alpha = 0.8
) +
scale_x_continuous(breaks = scales::pretty_breaks(n = 8)) +
facet_wrap( ~ pollutant, scales = "free") +
xlab("Concentration (µg/m³)") +
ylab("Wind Direction") +
theme_tufte()
# display the graph
graph_wd_pollutants
Please show me the code!
# save the graph
ggsave(
graph_wd_pollutants,
filename = here::here( "inputs", "3.outputs", "1.eda", "graph_wd_pollutants.pdf"),
width = 20,
height = 12,
units = "cm",
device = cairo_pdf
)
Using the openair package, we predict air pollutant concentrations using wind components:
Please show me the code!
# select relevant variables for the polar plots
data_polar_plots <- data %>%
select(wind_speed,
wind_direction,
mean_no2,
mean_o3,
mean_pm10,
mean_pm25) %>%
rename('Wind Speed' = wind_speed)
# make the polarPlot for all pollutants
no2_plot <-
polarPlot(
data_polar_plots,
pollutant = "mean_no2",
x = "Wind Speed",
wd = "wind_direction",
main = "Average NO2 (' * mu * 'g/m' ^3 *')",
key.header = "",
key.footer = "",
resolution = "fine",
par.settings = list(fontsize = list(text = 8))
)
o3_plot <-
polarPlot(
data_polar_plots,
pollutant = "mean_o3",
x = "Wind Speed",
wd = "wind_direction",
main = "Average O3 (' * mu * 'g/m' ^3 *')",
key.header = "",
key.footer = "",
resolution = "fine",
par.settings = list(fontsize = list(text = 8))
)
pm10_plot <-
polarPlot(
data_polar_plots,
pollutant = "mean_pm10",
x = "Wind Speed",
wd = "wind_direction",
main = "Average PM10 (' * mu * 'g/m' ^3 *')",
key.header = "",
key.footer = "",
resolution = "fine",
par.settings = list(fontsize = list(text = 8))
)
pm25_plot <-
polarPlot(
data_polar_plots,
pollutant = "mean_pm25",
x = "Wind Speed",
wd = "wind_direction",
main = "Average PM2.5 (' * mu * 'g/m' ^3 *')",
key.header = "",
key.footer = "",
resolution = "fine",
par.settings = list(fontsize = list(text = 8))
)
# save the graph
png(
here::here("inputs", "3.outputs", "1.eda", "graph_polar_plots_pollutants.png"),
width = 20,
height = 10,
units = "cm",
res = 1000
)
print(no2_plot, split = c(1, 1, 4, 1), more = TRUE)
print(o3_plot, split = c(2, 1, 4, 1), more = TRUE)
print(pm10_plot, split = c(3, 1, 4, 1), more = TRUE)
print(pm25_plot, split = c(4, 1, 4, 1), more = FALSE)
dev.off()
Wind Direction & Other Weather Parameters
We plot the distribution of continuous weather parameter by wind direction:
Please show me the code!
# make the graph
graph_wd_weather <- data %>%
rename(
"Average Temperature (°C)" = temperature_average,
"Average Humidity (%)" = humidity_average,
"Wind Speed (m/s)" = wind_speed
) %>%
pivot_longer(
cols = c(
"Average Temperature (°C)",
"Average Humidity (%)",
"Wind Speed (m/s)"
),
names_to = "weather_parameter",
values_to = "value"
) %>%
mutate(
horizontal_lines = case_when(
weather_parameter == "Average Temperature (°C)" ~ -6,
weather_parameter == "Average Humidity (%)" ~ 25,
weather_parameter == "Wind Speed (m/s)" ~ 0
)
) %>%
ggplot(., aes(x = value, y = wind_direction_categories)) +
geom_density_ridges(
color = NA,
size = 0.3,
fill = my_blue,
alpha = 0.8
) +
scale_x_continuous(breaks = scales::pretty_breaks(n = 8)) +
facet_wrap(~ weather_parameter, scales = "free") +
xlab("") +
ylab("Wind Direction") +
theme_tufte()
# display the graph
graph_wd_weather
Please show me the code!
# save the graph
ggsave(
graph_wd_weather,
filename = here::here( "inputs", "3.outputs", "1.eda", "graph_wd_weather.pdf"),
width = 30,
height = 10,
units = "cm",
device = cairo_pdf
)
We plot the distribution of rainfall duration by wind direction:
Please show me the code!
# make the graph
graph_wd_rainfall <- data %>%
select(rainfall_duration, wind_direction_categories) %>%
group_by(wind_direction_categories, rainfall_duration) %>%
summarise(n = n()) %>%
mutate(proportion = n / sum(n) * 100) %>%
ungroup() %>%
mutate(
rainfall_duration = case_when(
rainfall_duration == " 0" ~ "0 minute",
rainfall_duration == "[ 1, 12)" ~ "[1, 12) minutes",
rainfall_duration == "[ 12, 159)" ~ "[12, 159) minutes",
rainfall_duration == "[159,1440]" ~ "[159,1440] minutes"
)
) %>%
mutate(
rainfall_duration = fct_relevel(
rainfall_duration,
"0 minute",
"[1, 12) minutes",
"[12, 159) minutes",
"[159,1440] minutes"
)
) %>%
ggplot(., aes(x = proportion, y = rainfall_duration)) +
geom_point(shape = 16,
colour = my_blue,
size = 4) +
geom_vline(xintercept = 0,
size = 0.3,
colour = "black") +
facet_wrap( ~ wind_direction_categories, ncol = 4) +
xlab("Proportion (%)") + ylab("") +
theme_tufte() +
theme(axis.text.y = element_text(hjust = 1))
# display the graph
graph_wd_rainfall
Please show me the code!
# save the graph
ggsave(
graph_wd_rainfall,
filename = here::here( "inputs", "3.outputs", "1.eda", "graph_wd_rainfall.pdf"),
width = 25,
height = 10,
units = "cm",
device = cairo_pdf
)
Wind Direction & Calendar Indicators
We plot the distribution of wind direction by month:
Please show me the code!
# make the graph
graph_wd_month <- data %>%
select(month, wind_direction_categories) %>%
group_by(wind_direction_categories, month) %>%
summarise(n = n()) %>%
mutate(proportion = n / sum(n) * 100) %>%
ungroup() %>%
ggplot(., aes(x = month, y = proportion, group = "l")) +
geom_line(colour = "gray80") +
geom_point(colour = my_blue, size = 3) +
scale_y_continuous(breaks = scales::pretty_breaks(n = 7)) +
facet_wrap( ~ wind_direction_categories, ncol = 2) +
xlab("") + ylab("Proportion (%)") +
theme_tufte()
# display the graph
graph_wd_month
Please show me the code!
# save the graph
ggsave(
graph_wd_month,
filename = here::here( "inputs", "3.outputs", "1.eda", "graph_wd_month.pdf"),
width = 35,
height = 15,
units = "cm",
device = cairo_pdf
)
We plot the distribution of wind direction by year:
Please show me the code!
# make the graph
graph_wd_year <- data %>%
select(year, wind_direction_categories) %>%
mutate(year = as.factor(year)) %>%
group_by(wind_direction_categories, year) %>%
summarise(n = n()) %>%
mutate(proportion = n / sum(n) * 100) %>%
ungroup() %>%
ggplot(., aes(x = year, y = proportion, group = "l")) +
geom_line(colour = "gray80") +
geom_point(colour = my_blue, size = 3) +
scale_y_continuous(breaks = scales::pretty_breaks(n = 7)) +
facet_wrap( ~ wind_direction_categories, ncol = 2) +
xlab("") + ylab("Proportion (%)") +
theme_tufte()
# display the graph
graph_wd_year
Please show me the code!
# save the graph
ggsave(
graph_wd_year,
filename = here::here( "inputs", "3.outputs", "1.eda", "graph_wd_year.pdf"),
width = 30,
height = 15,
units = "cm",
device = cairo_pdf
)
Covariates Imbalance EDA
We check if covariates are balanced when we define treated days as units with North-East winds and control days as units where winds blow from other directions.
Defining Treatment
The treatment is defined as follows:
- treated units are days where winds blow from the North-East in t.
- control units are day winds blow from other directions in t.
# construct treatment allocation variable
data <- data %>%
mutate(is_treated = ifelse(
wind_direction_categories == "North-East",
"Treated",
"Control"
))
Weather Covariates Imbalance
We plot density distributions for continuous weather covariate by treatment status:
Please show me the code!
# we select control variables and store them in a long dataframe
data_weather_continuous_variables <- data %>%
select(temperature_average,
humidity_average,
wind_speed,
is_treated) %>%
pivot_longer(
cols = -c(is_treated),
names_to = "variable",
values_to = "values"
) %>%
mutate(
variable = NA %>%
ifelse(
str_detect(variable, "temperature_average"),
"Average Temperature (°C)",
.
) %>%
ifelse(
str_detect(variable, "humidity_average"),
"Humidity Average (%)",
.
) %>%
ifelse(str_detect(variable, "wind_speed"), "Wind Speed (m/s)", .)
)
# make the graph
graph_boxplot_continuous_weather <-
ggplot(data_weather_continuous_variables,
aes(x = values, y = is_treated, fill = is_treated)) +
geom_density_ridges(colour = NA) +
scale_fill_manual(values = c(my_blue, my_orange)) +
scale_x_continuous(breaks = scales::pretty_breaks(n = 10)) +
xlab("Covariate Value") +
ylab("") +
labs(fill = "Units Status:") +
facet_wrap( ~ variable, scale = "free", ncol = 3) +
theme_tufte()
# we print the graph
graph_boxplot_continuous_weather
Please show me the code!
# save the graph
ggsave(
graph_boxplot_continuous_weather,
filename = here::here( "inputs", "3.outputs", "1.eda", "graph_boxplot_continuous_weather.pdf"),
width = 30,
height = 10,
units = "cm",
device = cairo_pdf
)
We draw love plots which display the standardized mean differences between treated and control days for each weather covariate and by month:
Please show me the code!
# compute absolute differences
data_abs_difference <- data %>%
select(month,
is_treated,
temperature_average,
humidity_average,
wind_speed) %>%
group_by(month, is_treated) %>%
summarise_all(., ~ mean(., na.rm = TRUE)) %>%
pivot_longer(
cols = -c(month, is_treated),
names_to = "variable",
values_to = "average"
) %>%
arrange(month, variable) %>%
group_by(month, variable) %>%
summarise(abs_difference = abs(average[2] - average[1]))
# we compute the standard deviation of each treatment group covariate
data_sd <- data %>%
select(month,
is_treated,
temperature_average,
humidity_average,
wind_speed) %>%
filter(is_treated == "Treated") %>%
select(-is_treated) %>%
group_by(month) %>%
summarise_all(., ~ sd(., na.rm = TRUE)) %>%
pivot_longer(cols = -c(month),
names_to = "variable",
values_to = "sd_treatment")
# we merge data_abs_difference and data_sd
data_love <-
left_join(data_abs_difference, data_sd, by = c("month", "variable")) %>%
mutate(standardized_difference = abs_difference / sd_treatment) %>%
select(-c(abs_difference, sd_treatment)) %>%
mutate(
variable = case_when(
variable == "temperature_average" ~ "Average Temperature (°C)",
variable == "humidity_average" ~ "Humidity Average (%)",
variable == "wind_speed" ~ "Wind Speed (m/s)"
)
)
# we make the graph
graph_love <-
ggplot(data_love, aes(y = fct_rev(variable), x = standardized_difference)) +
geom_vline(xintercept = 0, size = 0.3) +
geom_vline(xintercept = 0.1,
color = my_orange,
size = 0.3) +
geom_point(size = 2, colour = my_blue) +
facet_wrap( ~ month, ncol = 4) +
xlab("Standardized Mean Differences") +
ylab("") +
theme_tufte() +
theme(
axis.text.y = element_text(hjust = 1, size = 10),
axis.text.x = element_text(size = 10),
panel.spacing = unit(0.5, "cm"),
plot.margin = unit(c(0.5, 0.5, 0.5, -0.5), "cm")
)
# we print the graph
graph_love
Please show me the code!
# save the graph
ggsave(
graph_love,
filename = here::here( "inputs", "3.outputs", "1.eda", "graph_love_weather.pdf"),
width = 20,
height = 12,
units = "cm",
device = cairo_pdf
)
We can also the imbalance and lack of overlap for the average temperature by drawing a ridgeline plot:
Please show me the code!
# make ridgeline plot for temperature
graph_ridgeline_temperature <-
ggplot(data, aes(x = temperature_average, y = month, fill = is_treated)) +
ggridges::geom_density_ridges2(alpha = 0.4, colour = NA) +
scale_fill_manual(values = c(my_blue, my_orange)) +
facet_wrap(~ year) +
labs(x = "Average Temperature (°C)", y = "", fill = "Group:") +
theme_tufte()
# we print the graph
graph_ridgeline_temperature
Please show me the code!
# save the graph
ggsave(
graph_ridgeline_temperature,
filename = here::here( "inputs", "3.outputs", "1.eda", "graph_ridgeline_temperature.pdf"),
width = 30,
height = 20,
units = "cm",
device = cairo_pdf
)
# make ridgeline plot for temperature
# figures for the article
graph_ridgeline_temperature <-
data %>%
filter(year %in% c(2008:2010)) %>%
mutate(is_treated = ifelse(is_treated == "Treated", "North-East Winds", "Other Wind Directions")) %>%
ggplot(., aes(x = temperature_average, y = month, fill = is_treated)) +
ggridges::geom_density_ridges2(alpha = 0.4, colour = NA) +
scale_fill_manual(values = c(my_orange, my_blue)) +
facet_wrap(~ year, nrow = 1) +
labs(x = "Average Temperature (°C)", y = "", fill = "Group:") +
theme_tufte()
# open polar plot
img_polar_lot <- png::readPNG(here::here("inputs", "3.outputs", "1.eda", "graph_polar_plots_pollutants.png"))
img_polar_lot <- ggplot() +
annotation_custom(
grid::rasterGrob(
img_polar_lot,
width =
ggplot2::unit(1, "npc"),
height =
ggplot2::unit(1, "npc")
),-Inf,
Inf,
-Inf,
Inf
)
# load patchwork
library(patchwork)
# combine plots
graph_polar_plots_imbalance_temperature <- img_polar_lot / graph_ridgeline_temperature +
plot_annotation(tag_levels = 'A') & theme(plot.tag = element_text(size = 18, face = "bold"))
# save the plots
ggsave(
graph_polar_plots_imbalance_temperature,
filename = here::here("inputs", "3.outputs", "1.eda", "graph_polar_plots_imbalance_temperature.pdf"),
width = 25,
height = 16,
units = "cm",
device = cairo_pdf
)
Calendar Imbalance
We plot the proportion of treated units by month:
Please show me the code!
# make the graph
graph_treated_month <- data %>%
select(month, is_treated) %>%
group_by(month, is_treated) %>%
summarise(n = n()) %>%
mutate(proportion = n / sum(n) * 100) %>%
ungroup() %>%
filter(is_treated == "Treated") %>%
ggplot(., aes(x = month, y = proportion, group = "l")) +
geom_line(colour = "gray80") +
geom_point(colour = my_blue, size = 3) +
scale_y_continuous(breaks = scales::pretty_breaks(n = 7)) +
xlab("") + ylab("Proportion (%)") +
theme_tufte()
# display the graph
graph_treated_month
Please show me the code!
# save the graph
ggsave(
graph_treated_month,
filename = here::here( "inputs", "3.outputs", "1.eda", "graph_treated_month.pdf"),
width = 20,
height = 8,
units = "cm",
device = cairo_pdf
)
